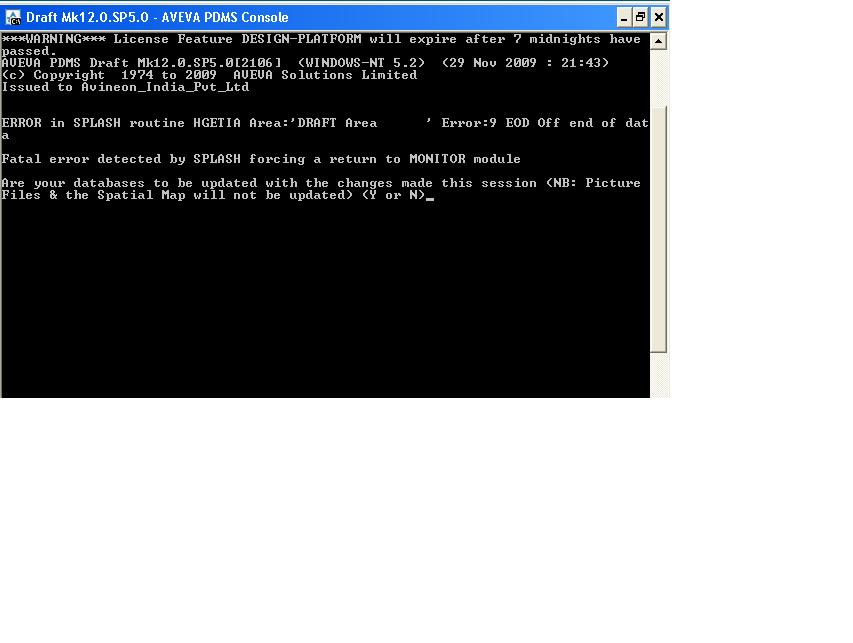

FATAL Error for one SITE While extracting Draft

Naresh Tarani

  • Check your drawlist.
    It could contain elements with problems.
    For example if you read your warnings from DICE:

    Element =27711/51206
    Warning- Attribute SIGREF contains invalid ref =19519/224225

    That element =27711/51206 has a missing reference.
    It could be that database 19519 is not in the MDB anymore and so all the pointers to it has been "lost"
    Database number is calculated like this: 19519-8192-8192=3135
  • You can do a TRACE to see what element and attribute it fails at.
  •

    Fullscreen 268864DiceResults..txt Download
    AVEVA PDMS Admin Mk12.0.SP5.12[2122]  (WINDOWS-NT 5.2)  (3  Aug 2010 : 21:39)
(c) Copyright  1974 to 2010  AVEVA Solutions Limited
Issued to Avineon_India_Pvt_Ltd


*****************************
* DATABASE INTEGRITY REPORT *
*****************************


Date 24 Feb 2011  Time 12:14

Project BSA
Database CIVSTR/2005            Filename      /%BSA000%/bsa3135_0001
                                DB number     3135
                                Extract number 1
                                DB type       DESI
                                DB size       65638 Pages
                                             (134.427 Million bytes)
                                Maximum size  2000 Million Pages
                                DB is 0.0033% full
                                Page size     2048 bytes
                                Last Session Number: 1074
                                Last Session Date: 11:57 24 Feb 2011
                                Last Session User: ntarani
                                Last Session Description: Default session comment

Options requested                STATISTICS ON
                                 CHECK EXTERNAL REFERENCES
                                 LIST REFERENCED DATABASES
                                 EXTERNAL PREFERENCE /171A
                                 PATCH ON
                                 CHECK CLAIM LIST
                                 FULL CHECK




Database has no structural errors

OVERALL STATISTICS
==================
Total no. of entries in Name Table = 85
Total no. of elements checked = 7488
Total no. of ref attributes found = 38588
Total no. of external references = 2533




External databases referenced
_____________________________

    Number   Name                No of references
    ______   ____                ________________

    7001     MASTER/STLCATA             530
    7596     ADMIN/ASLCONFIG            747
    7010     MASTER/ASLCATA             1256

  • What elements added in drawlist?
    check size of drawlist it may be exceeding.
  • Hi Matrix,

    I added only one site ......... Which contains  few structural elements like a small Pipe rack , handrails , platforms and few foundations....I don't think so, only because of these few elements it's going to create problem.... I already extracted draft layout drawings for sizes more than this......... in the same project

    Regards,
    Naresh
  • If I am not wrong, in the past I had a problem with drawlists containing 0 length SCTN elements.
    Try collecting and then deleting SCTN with CUTL EQ 0
  • Collect sections in site?
    and use mcount to count sections, if it is more than 8000 then probably that will cause error.
    Have you added that site in other drawlists which u already drafted?
  • The reason for getting Splash Error sometimes is: loss of connection. So you will need to check that as well. Also, did you try it at other machines and does it fetch the same result?
  • Hi All , Thanks for your kind reply.........

    Matrix,

    The sctn's are not more than 500.

    Corrado,

    There is only one SCTN with CUTL EQ 0 , I deleted it and still the same problem.

    and

    Shri,

    I checked with 4 machines................


    Regards,
    Naresh
