Lexicon - Only wanting to see UDA in draft

Hi
That worked
So question, how come i could not see that on drawing lvl ???? i had the lexicon set to drawing which I assumed was the drawing hierarchy

but I have changed it to sheet and it works , Have i used the wrong element for it to come out on the DRwg Level??

Cheers

if your elelist looks like 'DRWG SHEE', then you'll see new user-defined attribute on SHEE and on DRWG levels.

[QUOTE=Wolfie;72896]Hi Kubik,
we do have the elelist set to drwg and we did a complie and saved work but it wont appear!!
So set it to shee and drwg and it shows up in shee
So not sure why is not showing up on drwg!!
Cheers
Ian
Hi, here is a code. Save it in text file. Goto Lexicon and run it with $M/ it. Then DRWG should have UDA called drwgCheckDate

INPUT BEGIN
NEW UDA /UDA-Common-drwgCheckDate
UTYP TEXT
ULEN 120
ELEL ADD DRWG
UDNA 'drwgCheckDate'
END
INPUT END  UDA /UDA-Common-drwgCheckDate
INPUT FINISH

dont forgett compile and savework of you are in <12 version

HI guys,
ok the lexicon and uda are working with the shee but not with drwg - can you think of any reason why that is not working???
Cheers
Wolfie

add DRWG to your elelist of the certain UDA.

then make COMPILE and savework commands in the command window

Hi Kubik,

we do have the elelist set to drwg and we did a complie and saved work but it wont appear!!

So set it to shee and drwg and it shows up in shee
So not sure why is not showing up on drwg!!
Cheers
Ian

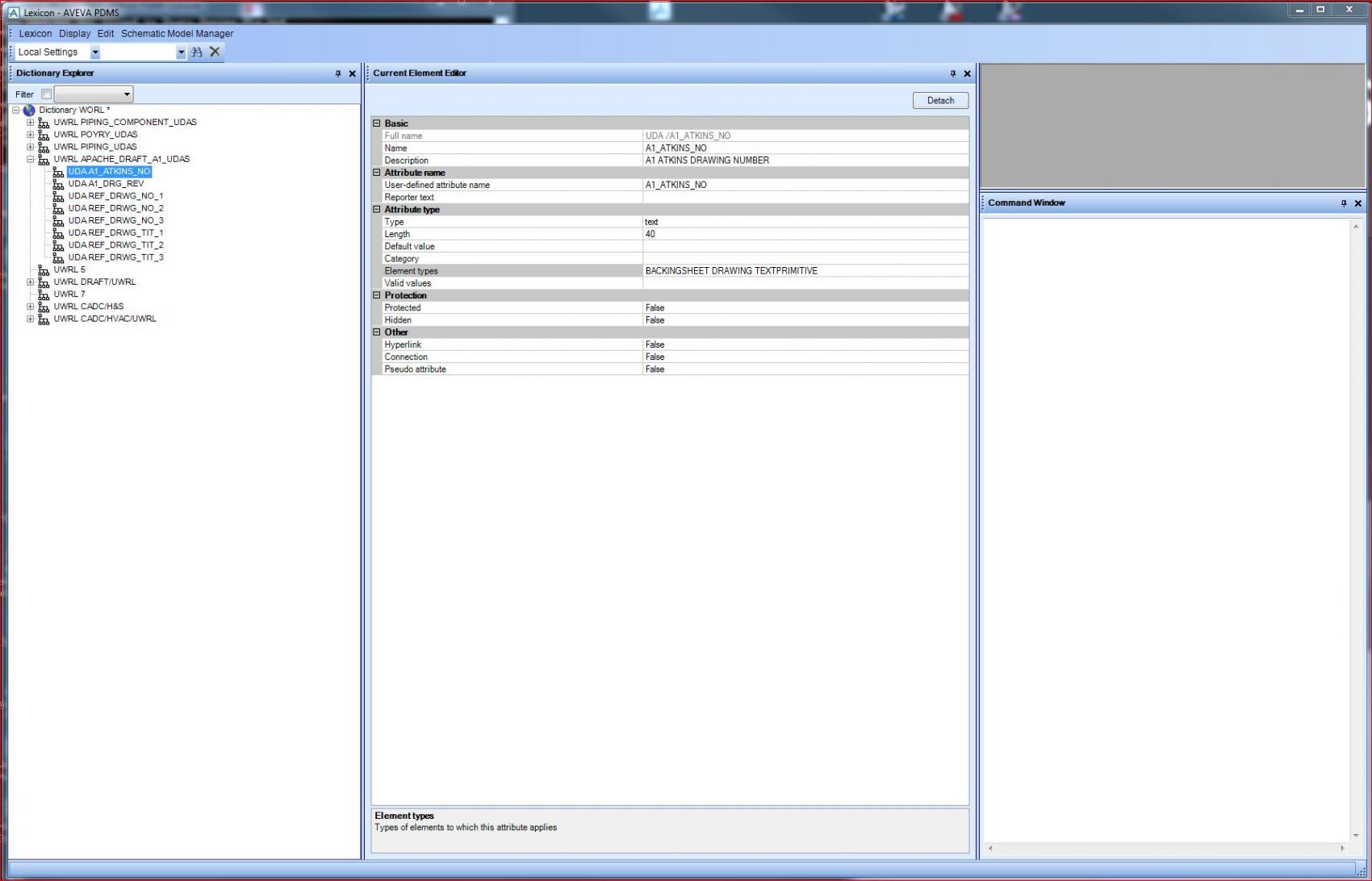

can you attach a screenshot from lexicon?



:) Wolfie
your problem is that the DRAWING on your screenshot is not a DRWG!
Your should DRWG but not a DRAWING which is other item in other hierrachy.
