Modificar vista de caños en los Draft

Hola señores;

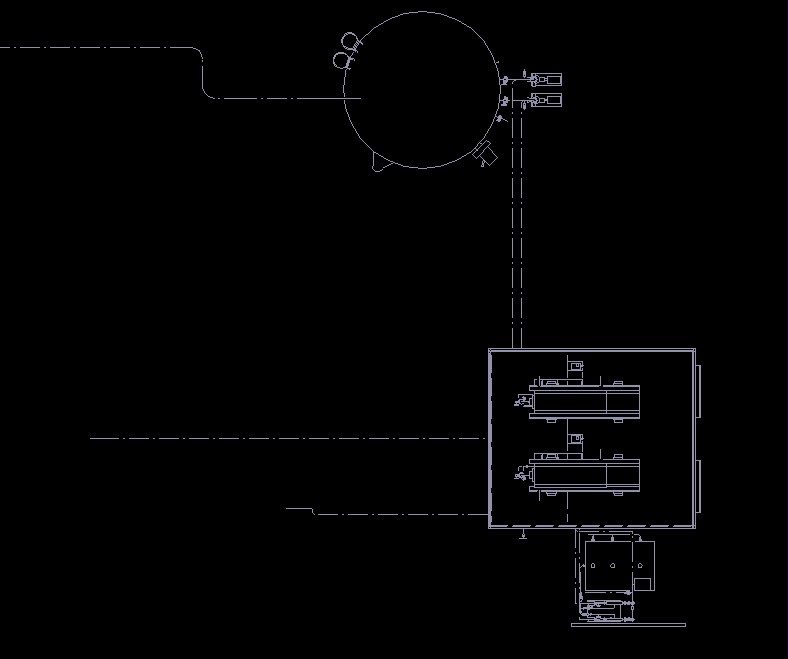

Al realizar planos la vista de los caños me queda punteada y sin color. Supongo que es un tema de configuración de vistas pero soy nuevo con el Aveva y no se donde puedo modificar para poder ver los caños y los equipos con colores cuando hago los planos.

Espero que me puedan ayudar.

Gracias,
Saludos, Felipe Martinez de Haedo

Hi,
For this you need to set representation rules in pdms for drafting module.
stand on a view and type q rrsf in command window.
it will display the representation rules set used by the view.

Hi,
Tanks por your answer.
I am new drawing in Aveva.
I have another question.
How it´s  made sopports plane?
Thanks

can you go through draft manual supplied by aveva it will help you a lot.

You mean like this pic. it is sample for support location

[ATTACH=CONFIG]8870[/ATTACH]

This is sample for support detail :

[ATTACH=CONFIG]8871[/ATTACH]

You Must make representation rules for them

Step For Them
- Create LIb
- Create RRST
- Create RRUl
- Create STYL

[COLOR=#333333]Hi [/COLOR][COLOR=#417394]deva.

[/COLOR][COLOR=#333333]Tanks for your answer.
[/COLOR][COLOR=#333333]



[/COLOR][COLOR=#333333]



[/COLOR]
