Trend Groups Feature

Anonymous
Anonymous

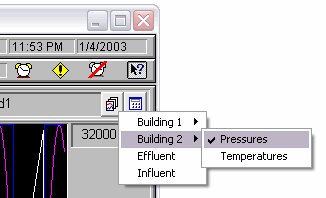

Displays a menu of grouped trend tags

Version
1.10

Requirements
CitectSCADA v5.21 or higher

Description
The Trend Groups feature allows you create groups of up to 8 trend tags, then select which group to display on your trend page in the runtime. Groups can also be modified in the runtime.

Groups can also have custom scales for each trend pen.

If many trend groups are required, they may be divided into sub-menus under the main menu.

See the included Readme.doc file for more information.

Update:
v1.10 Added tooltips to trend select buttons. Fixed setting of scales on clients.






Author
Eric Black

Submitter
Eric Black
