Graphic Trend Scale

Anonymous
Anonymous



Version
1.02

Requirements
Citect 5.21 Service pack G or higher

Description
Update: v1.02 Tick marks are better aligned and 'Out of memory' error in Citect 5.21 is fixed.

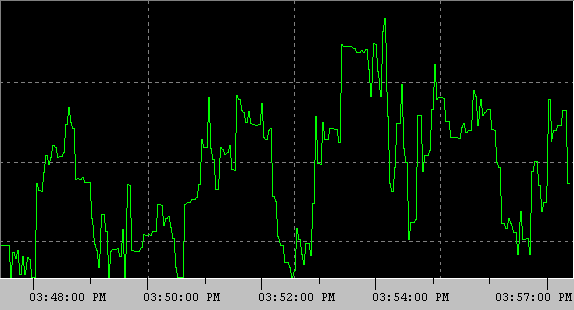

Trend Scale displays a scale along the bottom of a trend graph with tick marks and time/date labels. The tick marks automatically jump to the nearest second, hour, day, month, etc. according to the trend time span and they scroll along with the trend graph, whether in real-time or history mode.

See included readme.doc file for setup instructions.


Author
Eric Black

Submitter
Eric Black
