CitectSCADA PLUS Utilities

Anonymous
Anonymous

Support for Popup Menus,Network Ping,Win Titles,..

Version
3.50

Requirements
CitectSCADA Version 5.3 and higher.
(can be used in earlier ver, extract the DLL and cicode files)

Description
FILE HAS BEEN UPDATED (16 JUN 06) **
The following functions have been added which allow operations to be performed locally and on a network resource.

PLUSWUCreateNewDir
PLUSWUFileCopy
PLUSWUDirCopy
PLUSWUFileDelete
PLUSWUGetFileList
PLUSWUGetFileListCount
PLUSWUGetFileListName
PLUSWUPrintLine

** FILE HAS BEEN UPDATED (11 Apr 05) **
Works with CitectSCADA V6

** FILE HAS BEEN UPDATED (14 Apr 03) **

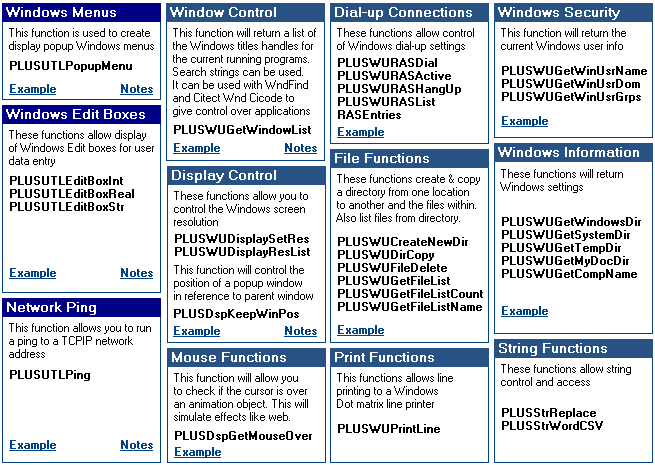

This utility consists of a DLL that is an add on to CitectSCADA to provide support for popup menus, network ping, accessing a window handle of an application even though the exact window title is not known, full directory copy, accessing the windows dir and system dir, mouse over and string Cicode functions and accessing the currently logged on Windows user name.
The file is a CitectSCADA project that has the DLL and shows examples of how to use the additional functions in CitectSCADA.
This DLL is fully compatible with Citect 5.42+.


Author

Tim van Wyk

Submitter
Tim van Wyk

Attachments
