Description The Process Analyst (PA) trend viewer is designed to be used with a mouse and keyboard. This causes problems with operator stations that are touchscreens with no mouse or keyboard. The toolbar buttons are hard to press, the scrollbars and splitterbars are hard to use, and some things like entering scales, spans, dates, times, and filters are not possible.

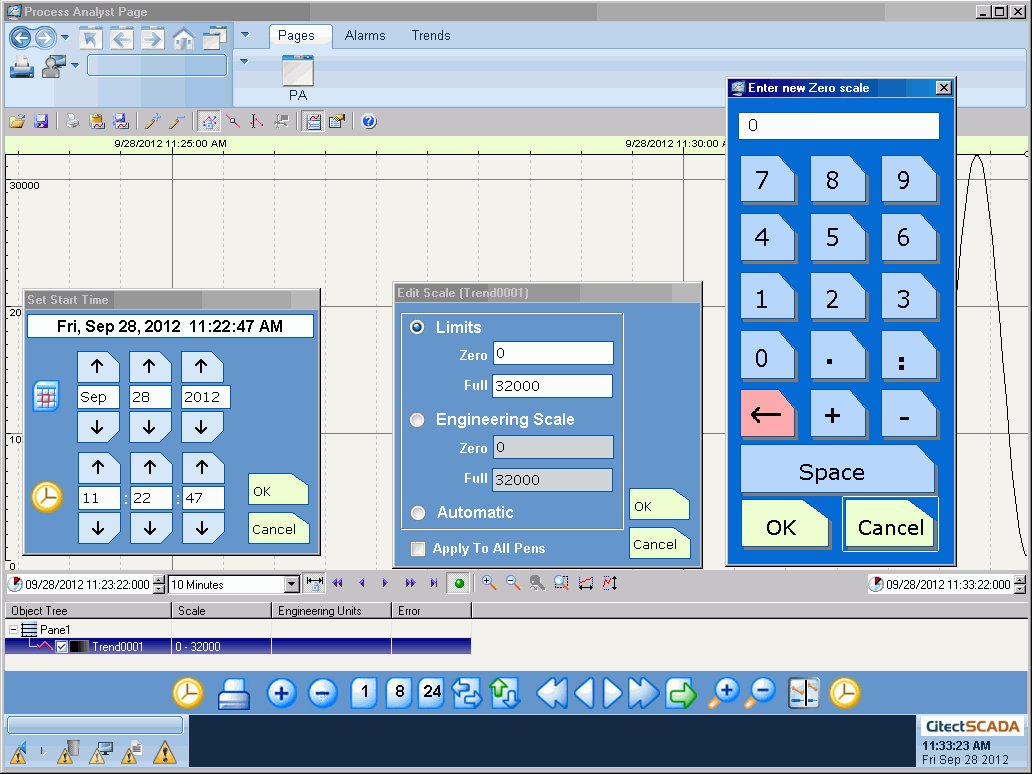

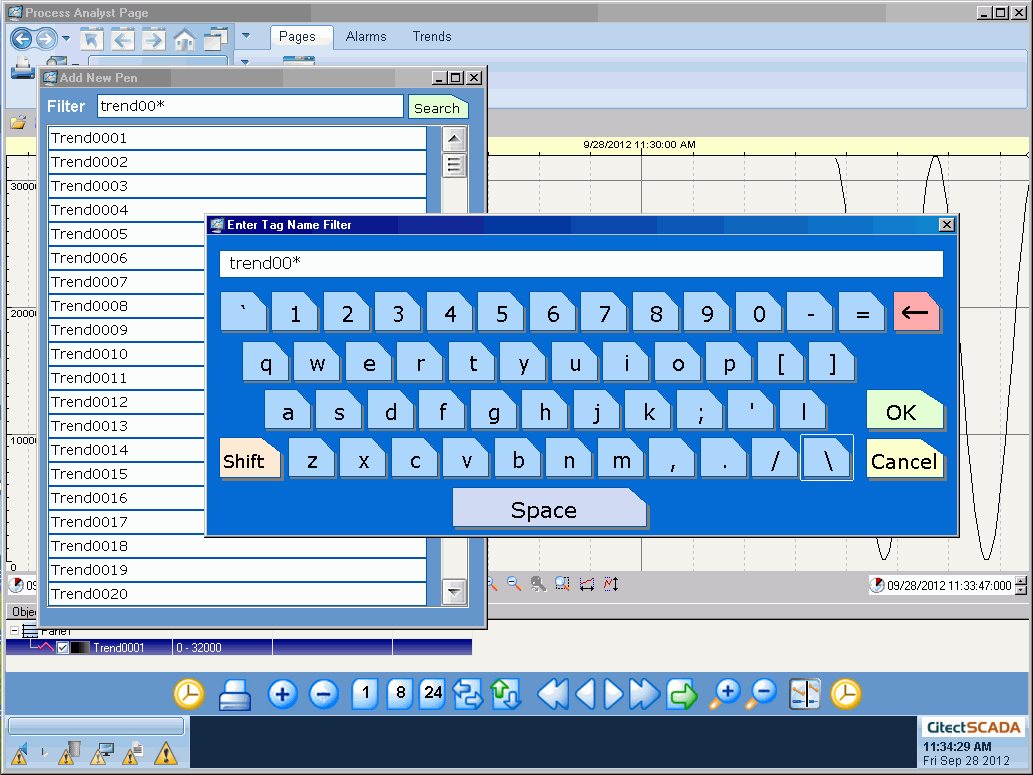

This project contains a genie toolbar to add above or below the PA object. The toolbar contains the commonly used items from the existing toolbars. It includes popup graphic pages for entering time/date/span/scales. Any text that needs to be entered will display a popup keyboard for touch entry.
Run the project and display the PA page for a demonstration, then click the Readme button to view the readme.txt file for instructions on how to copy the TouchPA components into your project.
