Speedometer-Type Gauge Genie

Anonymous over 13 years ago

Toolbox Template

Gauge Genie Example Project

Version
1.01

Requirements
Citect 7.10+

Description

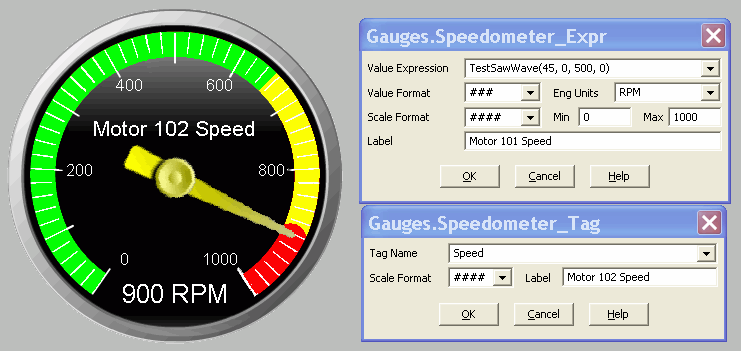

This project contains gauge symbols and a genie to display the gauge with a tag value and scale, and an animated needle. Run the project and open the gauges page for examples and instructions. No Cicode or ActiveX objects are required.

Updates

1.01

Fixed needle rotation when min scale is negative

1.00

Original release

Author
Eric Black

Submitter
Eric Black

Attachments

Gauges v1.01 Citect 7.20.ctz (484.3 KB)
