Toolbox Template

Dynamic, filtered, scrollable variable tag and debugging list

Version
1.00

Requirements
Citect 7.20

Description

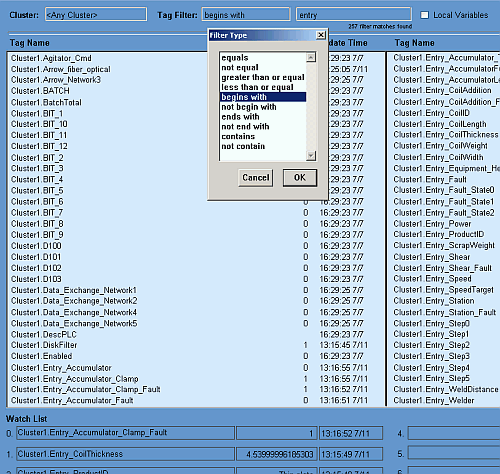

This project contains a TagList page which allows you to browse and filter the list of tags in the current project, displaying and changing the values. Tags may be filtered by cluster or any part of the name. Up to 8 tags may be added to a watch list that is always displayed.

Restore the attached project and open the TagList.rtf file for user documentation, and check TagList.ci for instructions to use it with your own project. To test it out with the Example project, open the TagList project and add Example to the Included Projects list. Run TagList and click the Page Select button, then choose TagList.

Author
Eric Black

Submitter
Eric Black
