GASKET NOT UPDATED IN NAVIS

Oh okay. should I make that checked?

Before you edit it, I would like to confirm.. Is this GRGGG00 gasket can be seen in E3D Model?

Yes. All the gaskets are seen in E3D model but not reflecting in NAVIS. That's the issue

Your project setup seems different from ours.

In our setup, if the Tuflag attribute is unset, it should not appear in the 3D View in the Model.

I see...Okay let me confirm once and let you know. Then we can proceed further.

Hi Emmanuel Desiderio ...The gasket is not showing up in design model too. You're right

What can be the possible solution now? please advice

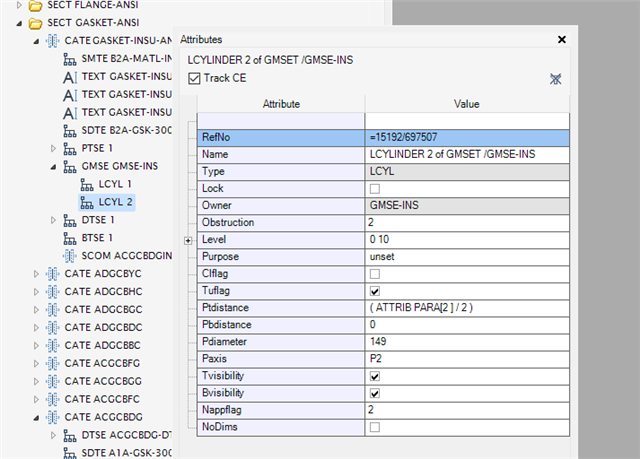

Above is the screenshot of my insulating gasket attributes. This is also not showing up in E3D Model.

I think that if you enable (or put a check) on the Tuflag attribute of the appropriate primitive/s, it should become visible in the 3D View of Model. It should also become visible in the exported Navis model.

For the insulating gasket, can you select its SCOM and send a screenshot of its attributes here?
