Beginners Calculate the number of pipe spools

Calculate the number of pipe spools

Kevin 3 months ago

Hi Guru

As per title topic, how to auto calculate the number of pipe spools on aveva e3d or aveva marine?

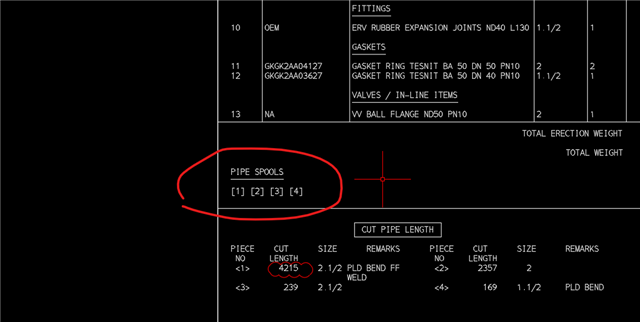

example below is the total number of spools in one pipeline. what is I want to count spools of several pipelines?

Parents

Corrado Galluzzi 3 months ago

Using Pipe Fabrication tool you get PSPOOL database elements.

You can assign them a unique name/number (with autonaming rules eventually).
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Kevin 3 months ago in reply to Corrado Galluzzi

Thank Corrado. Do we have other way to do it? I mean any command line once I click the pipe I just put the command to query the quantiquanti. spool number instead of generate isometric drawing?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Corrado Galluzzi 3 months ago in reply to Kevin

If you do not use Pipe Fabrication toolset or SPOOLER Module, spools are generated/numbered automatically by Isodraft "engine" when producing isometrics.

They depend on piping component SHOP attribute.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel

Reply

Corrado Galluzzi 3 months ago in reply to Kevin

If you do not use Pipe Fabrication toolset or SPOOLER Module, spools are generated/numbered automatically by Isodraft "engine" when producing isometrics.

They depend on piping component SHOP attribute.
