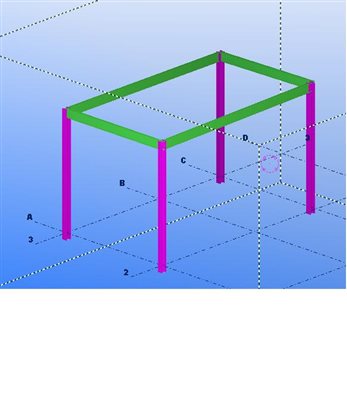

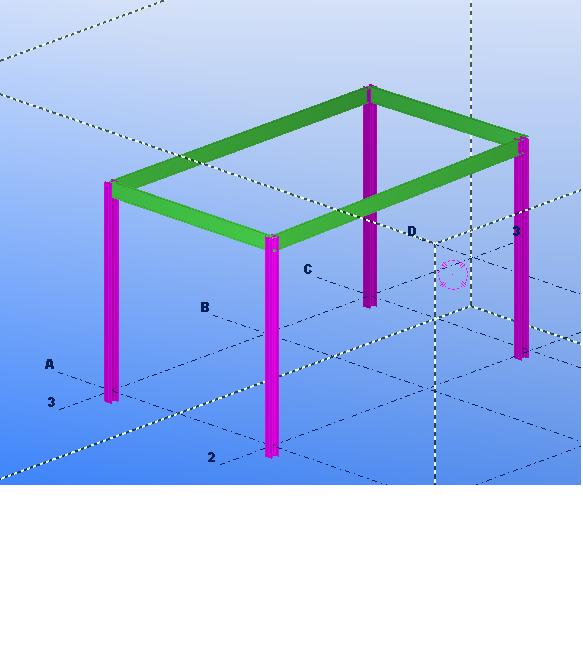

X-Steel to PDMS

Hamid Reza
Hamid Reza over 16 years ago

  • Sign in to reply
  • Cancel
  • Raymond Metselaar
    Raymond Metselaar over 15 years ago
    read the original post
    http://www.pdmsworld.com/forum/exchange-data-pdms/4288-x-steel-pdms.html#post20154
    which also has some error handling
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • aaaaaa
    aaaaaa over 15 years ago
    I read It
    But My Problem Has Been Remained
    Thanks
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Raymond Metselaar
    Raymond Metselaar over 15 years ago
    [QUOTE=maysamab;41147]Where is %SamDAT% Folder
    Where Should I Create This Folder?
    I Create folder Named "SDNF" in PMLLIB Directry  and Copy Entire folders  (in zip File) in this Directry , then Follow Instructions in PDMS and run *.pmlfrm
    but i get this error
    Is It True?
    thanks

    You should create the SAMDAT folder in the directory where the SAM project resides like:
    SAM000
    Make a new folder:
    SAMDAT
    and copy the file:
    transition.crd in that folder.
    Then in your PDMS evars add the
    if not "%SAMDAT%"=="" goto samdatok
    set SAMDAT=%1\project\samdat
    if exist %1\project\fd\samdat set SAMDAT=%1\project\fd\sam000
    echo SAMDAT=%SAMDAT%
    :samdatok
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • vivek chudasama
    vivek chudasama over 15 years ago
    hand railing, ladders and stairs couln't be import in pdms. so how to import this three things please help me
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Jonas Fjeld Christensen
    Jonas Fjeld Christensen over 15 years ago
    As Yar_nl is claiming the DAT folder needs to be inserted into SAM ( or other project ) at the same level as SAM000, SAMiso etc. The global variable needs to be set in the evars.bat file in install directory or in a an external bat file.

    vivekchudasama1984: It depends on the handrailing... If you insert the needed profiles for creating elements in both the mappingfila AND in Paragon it should work... unless the arcs are greater than 180degrees i think..
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Tim Sharrock
    Tim Sharrock over 15 years ago
    hand railing, ladders and stairs couln't be import in pdms. so how to import this three things please help me

    depending on how they are modelled in the sdnf file you may need the forthcoming OpenSteel 2.1, which will support, among other things, curved members
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • aaaaaa
    aaaaaa over 15 years ago
    Dear Yar_nl
    Thanks For Your Attention
    It worked Successfully But PDMS couldn't Know Some Profile that existed in xsteel
    How I can Import unknown Profile to map Files?
    thanks
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Raymond Metselaar
    Raymond Metselaar over 15 years ago
    No I have not used this utility so I am not sure. I think you have to have the profiles in the "standard" catalogue of PDMS and in the "standard" spec of PDMS. That way it should be mapped.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • aaaaaa
    aaaaaa over 15 years ago
    Dear Yar_nl
    I Don't Know Any Thing About Steel Catalogue.
    How I Can Create Steel Profile Catalogue?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Mr.Win Latt Oo
    Mr.Win Latt Oo over 14 years ago
