Weld Gap / Weld Spool - Report

Aurelio Hinampas over 4 years ago

Top Replies

Aurelio Hinampas over 4 years ago +1

[QUOTE=fadzlijais;116697]thanks for sharing. anyhow the macro didn't capture allowance provided for field Weld. How did you assign the Field Weld allowance on the piping components?
Mohd Fadzli over 4 years ago +1

Field Weld assign for weld with SKEY WF and loose flange allowance in option file set as 150mm as default. Allowance attribute for weld will be set as 300mm for FFW with SKEY WF since as default the…

Aurelio Hinampas over 4 years ago
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Sgar Saha over 4 years ago

Hello Team,

Any idea how to take slope report of pipe.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Aurelio Hinampas over 4 years ago

[QUOTE=Sagr;116988]Hello Team,

Any idea how to take slope report of pipe.

You can get report for BRAN attributes of HDIRECTION TDIRECTION SLOREFERENCE
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Sgar Saha over 4 years ago
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Aurelio Hinampas over 4 years ago

https://aveva.dev-verintcommunity.com/cfs-file/__key/communityserver-discussions-components-files/1598/202604aphWeldGapReport.pmlmac
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
vishal ashokan over 4 years ago

Sir this macro i wont be able to use in e3d can plz update it for e3d.
Thanks
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Aurelio Hinampas over 4 years ago

For E3D version, just replace the following macro line code:
using namespace 'Aveva.Pdms.Presentation'
Replace with
using namespace 'Aveva.Core.Presentation'
Cancel
Vote Up -1 Vote Down

Sign in to reply

Cancel
Sgar Saha over 4 years ago

Hello , I have noticed that on this macro if fitting to fitting gap is zero than we are not getting that in report. Could you please let me know how to get that also .
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Aurelio Hinampas over 4 years ago

Just remove or comment out the IF condition for Zero length spool as shown below
-- if (!prevWeldGap.nint().gt(0)) then -- Report Datas !reportDatas = !pipeName & '^' & !branName & '^' & !nextDbRefe.name & '^' & !nextDbRefe.type & '^' & !nextRefBore & '^' & !nextWallt & '^' & !compRefe.name & '^' & !compRefe.type & '^' & !compRefe.abore & '^' & !compWallt & '^' & !prevWeldGap -- Store data to array !weldGapData.append(!reportDatas) -- endif
-- if (!nextWeldGap.nint().gt(0)) then -- Report Datas !reportDatas = !pipeName & '^' & !branName & '^' & !compRefe.name & '^' & !compRefe.type & '^' & !compRefe.lbore & '^' & !compWallt & '^' & !nextDbRefe.name & '^' & !nextDbRefe.type & '^' & !nextRefBore & '^' & !nextWallt & '^' & !nextWeldGap -- Store data to array !weldGapData.append(!reportDatas) -- endif
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
vishal ashokan over 4 years ago

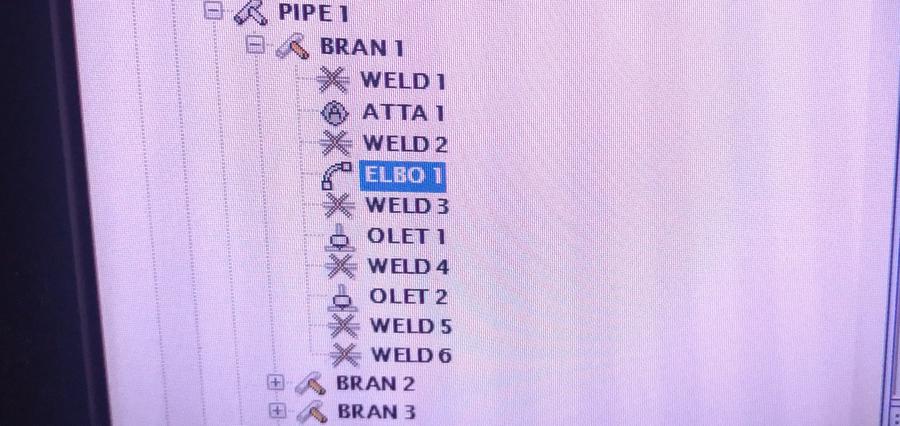

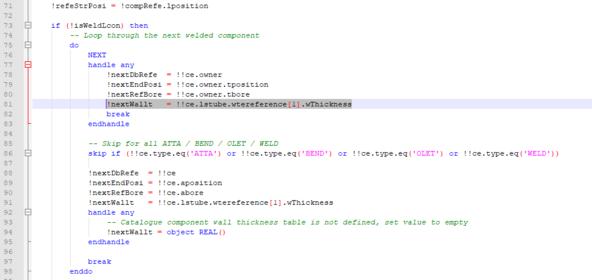

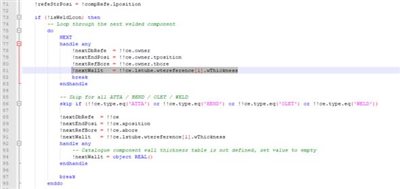

its is showing error (44,33) fnf:file not found
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
