Same Bolt length



[QUOTE=adnin;33615]Hi there,

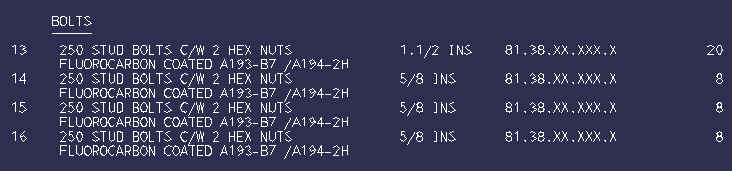

We'd problem in bolt length.  In isodraft, it gave us the same length for different size of flange i.e. 250mm.

fyi, when we generate the isometric using AVEVA option file, it look good but not for our in house option file. This happens only on one piping spec. not the rest.

See attached.:unsure:

You could make a copy of the isodraft option file and then
by removing and adding line by line check the isometric where it goes wrong.

Now I guess that somehow the below in bold gets overwritten by your in house option file:

Bolting  length description ON
Bolting  length itemcode APPEND[/U]
Bolting  Units  METIMP
BoltFile  OFF

Hth,

[QUOTE=yar_nl;33625]You could make a copy of the isodraft option file and then
by removing and adding line by line check the isometric where it goes wrong.

Now I guess that somehow the below in bold gets overwritten by your in house option file:

Bolting  length description ON
Bolting  length itemcode APPEND[/U]
Bolting  Units  METIMP
BoltFile  OFF

Hth,

Same bolt length.
I have already done the Bolting  length itemcode APPEND[/U] on my isodraft option file, but the length didn't change. But if I make my ME Code on the DTAB unique for every Blength, the length for different size of flange will be right on the isodraft. Unfortunately, I have only 1 ME code for for any Blength in this project.

Any solution? thx b4
