Duplicat Bolting Entries in Isometric


  •

    $S-  -- Synonym translation OFF
    -- ----------------------------------------------------------------
    -- Data Listing    Date : 11 Oct 2010 15:25

    ONERROR GOLABEL /ERROR0

    INPUT BEGIN
    NEW CCTABLE /10446CT

    NEW COCO /ANY-ANY1
    CTYP ANY ANY
    CKEY unset

    END
    NEW COCO /ATT-GBB1
    CTYP ATT GBB
    CKEY unset

    END
    NEW COCO /BWD-BWD1
    CTYP BWD BWD
    CKEY unset

    END
    NEW COCO /FBB-OPEN1
    CTYP FBB OPEN

    END
    NEW COCO /GBB-OPEN
    CTYP GBB OPEN

    END
    NEW COCO /OPEN-ATT1
    CTYP OPEN ATT

    END
    NEW COCO /SWF-SWM
    CTYP SWF SWM
    CKEY unset

    END
    NEW COCO /SWM-OPEN2
    CTYP SWM OPEN
    CKEY unset

    END
    NEW COCO /TUB-BWD2
    CTYP TUB BWD
    CKEY unset

    END
    NEW COCO /TUB-SWF1
    CTYP TUB SWF
    CKEY unset

    END
    NEW COCO /ATT-GBD1
    CTYP ATT GBD
    CKEY unset

    END
    NEW COCO /BWD-ANY
    CTYP BWD ANY
    CKEY unset

    END
    NEW COCO /FBB-ANY
    CTYP FBB ANY
    CKEY unset

    END
    NEW COCO /GBB-ANY
    CTYP GBB ANY
    CKEY unset

    END
    NEW COCO /OPEN-ANY
    CTYP OPEN ANY
    CKEY unset

    END
    NEW COCO /SWF-ANY1
    CTYP SWF ANY
    CKEY unset

    END
    NEW COCO /SWM-ANY
    CTYP SWM ANY
    CKEY unset

    END
    NEW COCO /BWD-OPEN1
    CTYP BWD OPEN
    CKEY unset

    END
    NEW COCO /SWF-OPEN
    CTYP SWF OPEN
    CKEY unset

    END
    NEW COCO /SWM-SWF2
    CTYP SWM SWF
    CKEY unset

    END
    NEW COCO /TUB-OPEN1
    CTYP TUB OPEN

    END
    NEW COCO /WFBB-GBB1
    CTYP WFBB GBB

    END
    NEW COCO /WFBB-FBB
    CTYP WFBB FBB

    END
    NEW COCO /WFBB-OPEN
    CTYP WFBB OPEN
    CKEY unset

    END
    NEW COCO /WFBB-ANY
    CTYP WFBB ANY
    CKEY unset

    END
    NEW COCO /SMC-ATT
    CTYP SMC ATT
    CKEY unset

    END
    NEW COCO /SMC-SWF
    CTYP SMC SWF
    CKEY unset

    END
    NEW COCO /SMC-SWM
    CTYP SMC SWM
    CKEY unset

    END
    NEW COCO /ATT-TUB
    CTYP ATT TUB
    CKEY unset

    END
    NEW COCO /ANY-ATT
    CTYP ANY ATT
    CKEY unset

    END
    NEW COCO /ATT-ANY1
    CTYP ATT ANY
    CKEY unset

    END
    NEW COCO /ATT-FWD1
    CTYP ATT FWD

    END
    NEW COCO /SWF-TUB
    CTYP SWF TUB

    END
    NEW COCO /FBB-GBB2
    CTYP FBB GBB
    CKEY unset

    END
    NEW COCO /FBD-GBD1
    CTYP FBD GBD
    CKEY unset

    END
    NEW COCO /SFC-ANY
    CTYP SFC ANY
    CKEY unset

    END
    NEW COCO /SFC-TUB
    CTYP SFC TUB

    END
    NEW COCO /BWD-TUB
    CTYP BWD TUB

    END
    NEW COCO /SMC-TUB
    CTYP SMC TUB

    END
    NEW COCO /SWM-TUB1
    CTYP SWM TUB
    CKEY unset

    END
    NEW COCO /FBD-ATT1
    CTYP FBD ATT
    CKEY unset

    END
    NEW COCO /SFC-SWF
    CTYP SFC SWF

    END
    NEW COCO /TUB-SFC2
    CTYP TUB SFC

    END
    NEW COCO /WFBB-GBD
    CTYP WFBB GBD
    CKEY unset

    END
    NEW COCO /WFBD-ANY
    CTYP WFBD ANY

    END
    NEW COCO /WFBD-GBB
    CTYP WFBD GBB

    END
    NEW COCO /WFBD-OPEN
    CTYP WFBD OPEN

    END
    NEW COCO /WFBD-GBD1
    CTYP WFBD GBD

    END
    NEW COCO /FBF-ANY
    CTYP FBF ANY

    END
    NEW COCO /FBF-OPEN
    CTYP FBF OPEN

    END
    NEW COCO /FBF-GBB
    CTYP FBF GBB

    END
    NEW COCO /BWD-SWF
    CTYP BWD SWF

    END
    NEW COCO /BWD-SFC
    CTYP BWD SFC

    END
    NEW COCO /BWD-SWM
    CTYP BWD SWM

    END
    END
    INPUT END  /10446CT
    INPUT FINISH
    -- Switch synonyms back on if an error occurs.
    LABEL /ERROR0
    handle ANY
    $S+
    RETURN ERROR
    endhandle

    -- End Data Listing    Date : 11 Oct 2010 15:25
    $S+  -- Synonym translation ON
    -- ----------------------------------------------------------------



  • It is dificult to read a spec dblisting, Could you enter Speconmode and OUT the Boltspec.
    Also what are the catalogue settings for the BLTREF. Does it have BITEMS set?

    My first thought ,looking at the quantities, is that the first entry is the Studbolt with 40 off.
    The next two entries may be an attempt to call off nuts and washers with 80 off (2 for each studbolt)
  • I am still getting to know PDMS12 but I be;ieve the answer is in the settings for the BLTREF

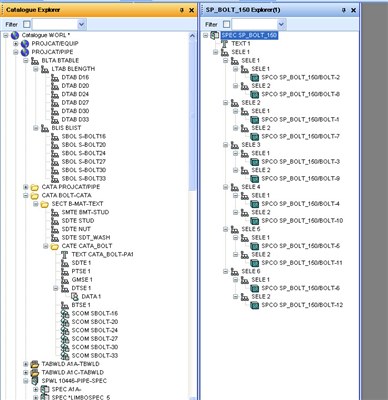

    Go to the SBOL in explorer
    click on Modify>attributes
    (What are the settings?)

    Now in the command line type Q ATT
    There is an extra entry"Bitlength" in this list
    (What is the Bitlength valus set at?)
  • First Possible answer is to reset the SBOL extra item names on the Bolt Table Utilities form from NUT & WASHER to UNSET but leave the item length. According to the manual it is not necessary to name the items if you do not want the items listed on the BOM
    If that does not work
    Second possibility is to remove the extra items completely (length and name) and add the combined length  to the Extra Length column
    The second option should not be necessary but may work as a quick fix until a better answer is found
  • Did you resolve this problem?
    If so, what was the answer?

    It may help others in the future.
  • What is the arrive/leave connection types on flanges/gaskets in that model? Q ACON LCON
