Bolt spec with BSEL not working in 12.1

Bart de Ruiter

  • Could you please export your bolt spec and upload it here?

    I have two doubts.....

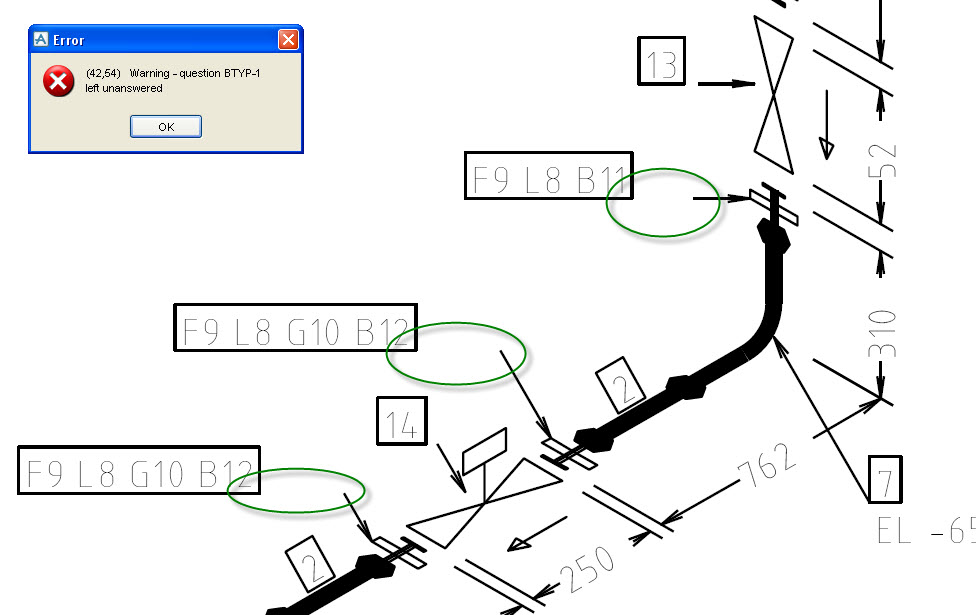

    The error message says "...BTYP-1..." but the spec heading reports "BTYP"
    One Bolt Type in your spec is "STU" while I usually use "STUD".....it shouldn't make a difference......
  • I would have preferred a formatted "specon" type file but anyway I can't see anything wrong with it.
    As in 12.1 you have Units now, I would check your SBOL catalogue. If the conversion has been 100% ok.
    I would also run Data Consistency on your PIPE ti check if you get any helping message...
    Sorry not being that helpful...
  •

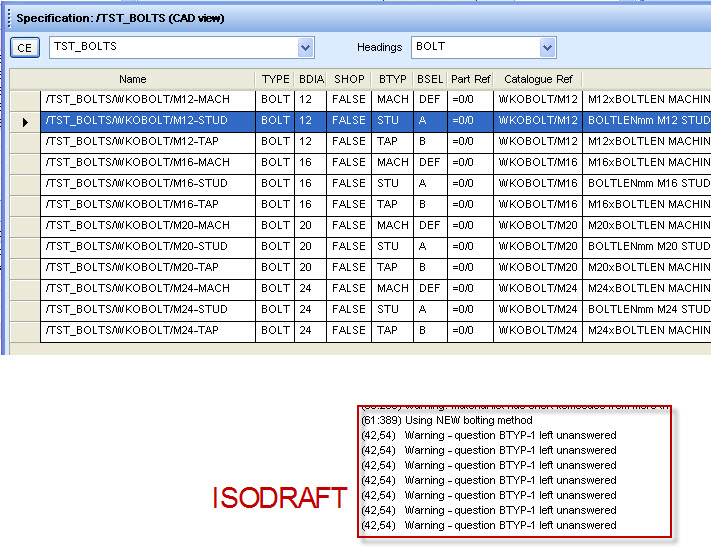

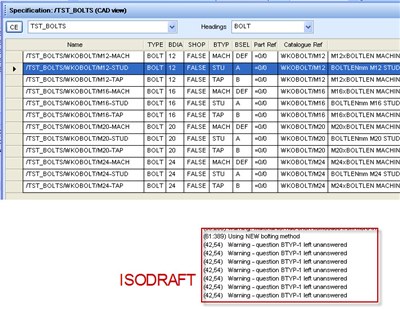

    Fullscreen 299531WKOBOLTTEST.txt Download
    INPUT BEGIN
NEW SPECIFICATION /TST_BOLTS
LNTP unset
QUES TYPE
PURP PIPE
QTYPE unset
TDEF 'NONE'

NEW TEXT
STEX 'BOLT'

END
NEW SELEC
QUES BDIA
QTYPE unset
TANS 'BOLT'
TDEF 'NONE'

NEW SELEC
ANSW 12
MAXA 12
QUES SHOP
QTYPE unset
TDEF 'EQUA'

NEW SELEC
QUES BTYP
QTYPE unset
TANS 'FALSE'
TDEF 'EQUA'

NEW SELEC
QUES BSEL
TANS 'MACH'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M12-MACH
TANS 'DEF'

END
END
NEW SELEC
QUES BSEL
TANS 'STU'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M12-STUD
TANS 'A'

END
END
NEW SELEC
QUES BSEL
TANS 'TAP'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M12-TAP
TANS 'B'

END
END
END
END
NEW SELEC
ANSW 16
MAXA 16
QUES SHOP
QTYPE unset
TDEF 'EQUA'

NEW SELEC
QUES BTYP
QTYPE unset
TANS 'FALSE'
TDEF 'EQUA'

NEW SELEC
QUES BSEL
TANS 'MACH'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M16-MACH
TANS 'DEF'

END
END
NEW SELEC
QUES BSEL
TANS 'STU'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M16-STUD
TANS 'A'

END
END
NEW SELEC
QUES BSEL
TANS 'TAP'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M16-TAP
ANSW 2
MAXA 2
TANS 'B'

END
END
END
END
NEW SELEC
ANSW 20
MAXA 20
QUES SHOP
QTYPE unset
TDEF 'EQUA'

NEW SELEC
QUES BTYP
QTYPE unset
TANS 'FALSE'
TDEF 'EQUA'

NEW SELEC
QUES BSEL
TANS 'MACH'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M20-MACH
TANS 'DEF'

END
END
NEW SELEC
QUES BSEL
TANS 'STU'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M20-STUD
ANSW 1
MAXA 1
TANS 'A'

END
END
NEW SELEC
QUES BSEL
TANS 'TAP'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M20-TAP
TANS 'B'

END
END
END
END
NEW SELEC
ANSW 24
MAXA 24
QUES SHOP
QTYPE unset
TDEF 'EQUA'

NEW SELEC
QUES BTYP
QTYPE unset
TANS 'FALSE'
TDEF 'EQUA'

NEW SELEC
QUES BSEL
TANS 'MACH'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M24-MACH
TANS 'DEF'

END
END
NEW SELEC
QUES BSEL
TANS 'STU'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M24-STUD
TANS 'A'

END
END
NEW SELEC
QUES BSEL
TANS 'TAP'
TDEF 'DEF'

NEW SPCOMPONENT /TST_BOLTS/WKOBOLT/M24-TAP
TANS 'B'

END
END
END
END
END
END
OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M12-MACH
CATR SCOMPONENT /WKOBOLT/M12
DETR SDTEXT /WKOBOLT/ZESKANTBOUTM12
BLTR SBOLT /WKO-M12-ZESKANT-SBOL

OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M12-STUD
CATR SCOMPONENT /WKOBOLT/M12
DETR SDTEXT /WKOBOLT/DRAADSTANGM12
BLTR SBOLT /WKO-M12-DRAADSTANG-SBOL

OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M12-TAP
CATR SCOMPONENT /WKOBOLT/M12
DETR SDTEXT /WKOBOLT/ZESKANTBOUT_TAPPEDM12
BLTR SBOLT /WKO-M12-ZESKANT-TAPPED-SBOL

OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M16-MACH
CATR SCOMPONENT /WKOBOLT/M16
DETR SDTEXT /WKOBOLT/ZESKANTBOUTM16
BLTR SBOLT /WKO-M16-ZESKANT-SBOL

OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M16-STUD
CATR SCOMPONENT /WKOBOLT/M16
DETR SDTEXT /WKOBOLT/DRAADSTANGM16
BLTR SBOLT /WKO-M16-DRAADSTANG-SBOL

OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M16-TAP
CATR SCOMPONENT /WKOBOLT/M16
DETR SDTEXT /WKOBOLT/ZESKANTBOUT_TAPPEDM16
BLTR SBOLT /WKO-M16-ZESKANT-TAPPED-SBOL

OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M20-MACH
CATR SCOMPONENT /WKOBOLT/M20
DETR SDTEXT /WKOBOLT/ZESKANTBOUTM20
BLTR SBOLT /WKO-M20-ZESKANT-SBOL

OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M20-STUD
CATR SCOMPONENT /WKOBOLT/M20
DETR SDTEXT /WKOBOLT/DRAADSTANGM20
BLTR SBOLT /WKO-M20-DRAADSTANG-SBOL

OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M20-TAP
CATR SCOMPONENT /WKOBOLT/M20
DETR SDTEXT /WKOBOLT/ZESKANTBOUT_TAPPEDM20
BLTR SBOLT /WKO-M20-ZESKANT-TAPPED-SBOL

OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M24-MACH
CATR SCOMPONENT /WKOBOLT/M24
DETR SDTEXT /WKOBOLT/ZESKANTBOUTM24
BLTR SBOLT /WKO-M24-ZESKANT-SBOL

OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M24-STUD
CATR SCOMPONENT /WKOBOLT/M24
DETR SDTEXT /WKOBOLT/DRAADSTANGM24
BLTR SBOLT /WKO-M24-DRAADSTANG-SBOL

OLD SPCOMPONENT /TST_BOLTS/WKOBOLT/M24-TAP
CATR SCOMPONENT /WKOBOLT/M24
DETR SDTEXT /WKOBOLT/ZESKANTBOUT_TAPPEDM24
BLTR SBOLT /WKO-M24-ZESKANT-TAPPED-SBOL

INPUT END  SPECIFICATION /TST_BOLTS
INPUT FINISH

  • ... But never logged into that scary Specon...


    You don't need to enter Specon. You have an Export... button in the Specification Form.

    ...i just have Bitems unset and Blength 20mm...



    At SBOL level.
    If you have BITEMS unset, then BITLENGTH has to be 0mm
    No need to set LENGTH attribute (OLD method) but eventually XTRALENGTH
  • Thanks for the tip...

    At SBOL level i used BITLENGHT for the lenght of the washers amd nuts... And XTRALENGHTH for 4mm extra thread.
    It was all working fine in 12.0 and i tried to delete the BITLENGTH now, but it did not solved the problem.

    Birdy
  • Maybe too obvious, but did you set the BSEL on the Valve as well as the Flanges?
    All components except wafers and gaskets need to have the same BSEL.
  • Yes, BSEL is set on all items with coco starting with F...
    In mij test pipe i only have left two flanges... Even the stubends and gasket are removed.
    It is calculating te bolts correctly, but only giving the above error 8 times (for the 8 boltholes in the flange)...
  • At SBOL level i used BITLENGHT for the lenght of the washers amd nuts...


    But if you want to do that you need to give a value to BITEM attribute too.
    So if you need two washers and two nuts...
    BITEMS NUT WASH WASH NUT
    BITLEN 20 2 2 20
