4 weld mitre 90 deg catalogue

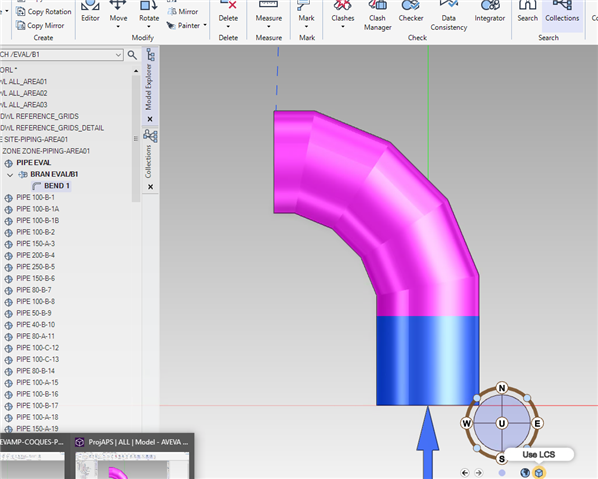

You can have as many cuts as you like using variable cuts-variable angle-variable radius bends.
Just change NCUTS attribute at BEND level once in Design module.

Here below the new CATE belonging to the  /NEW-MITRE-BENDS Section of Aveva supplied ACP project

/00BU0WN  180 Degree Bend
/00BV0W0  Variable Radius Variable Angle Bends
/00BV0W1  Variable Radius Variable Angle 1 cut Mitre Bends
/00BV0W2  Variable Radius Variable Angle 2 cut Mitre Bends
/00BV0W3  Variable Radius Variable Angle 3 cut Mitre Bends
/00BV0W4  Variable Radius Variable Angle 4 Cut Mitre Bends
/00BV0W5  Variable Radius Variable Angle 5 cut Mitre Bends
/00BV0W6  Variable Radius Variable Angle 6 cut Mitre Bends
/00BV0WN  Variable Radius Variable Angle Variable cut Mitre Bends

can i find handy a catalogue for 90 degree and 4 degree mitre there is no refrence available in sample project can you please share a sample catalouge

are there catalogues for 5 piece mitre 90 degree and 45 degree mitre 3 weld in smaple project , I am unable to find them .Can you share the same or is anyone having such catalogues handy

thanks corrado

Hi, Those categories are without geometry set on the ACP project...

Does anyone have it full??

That's the way it works.

They are "special" components with no geometry set.

Interesting, I don't recall ever using mitre bend on E3D...But, E3D really draw them

I am certainly going to investigate how this work.

Thanks
