Hello all, I have an urgent problem I need help with.
I have set up Mitre Bends in Paragon E3D with NCUTS -1, no geometry and weight parameter set up in kg/m. In the specification, I assigned a TUBD Component reference.
The issue is; while my branch brwei seems to be correct, the mitre bends themselves evaluate brwei to 0 kg. Due to this, the weight of spools displayed in spooldrawings differs.
If anyone encountered and solved this issue; I would be most grateful for help!

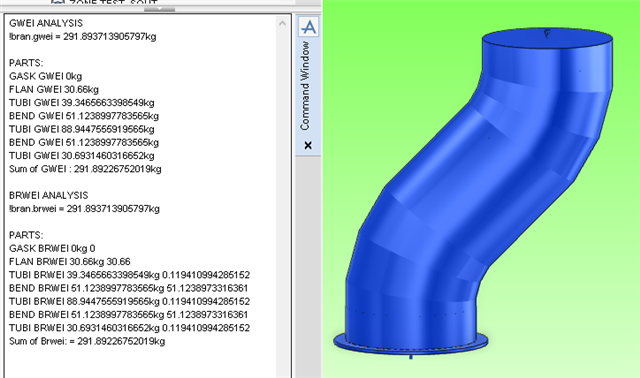

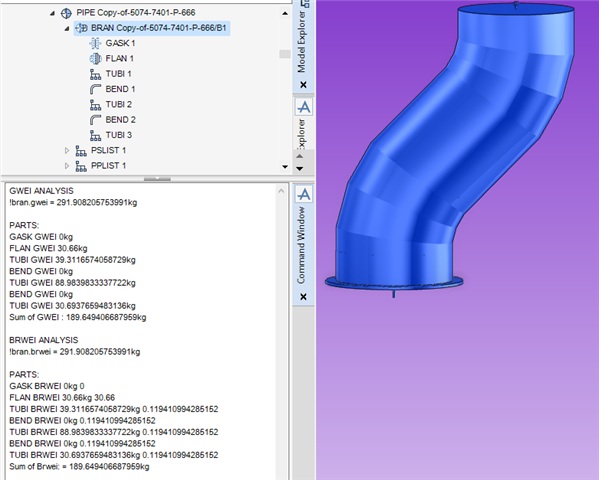

Here are brwei and gwei values of a test pipe:

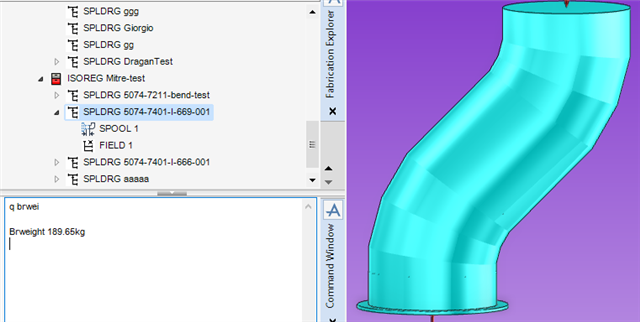

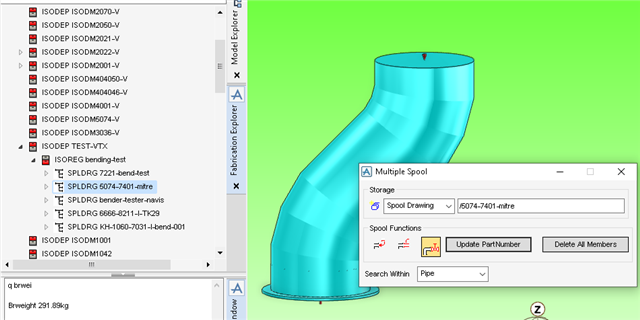

Brwei of Spldrg (same results if I select spool)

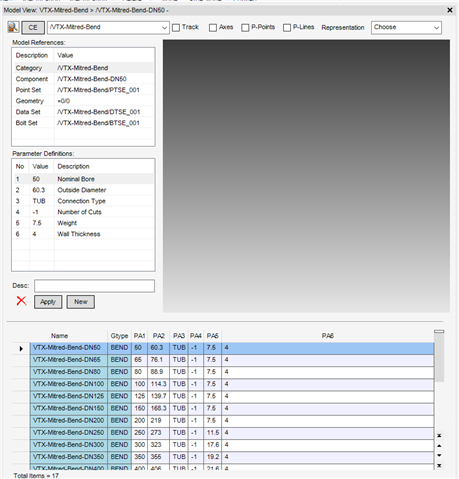

My Mitre bend in Paragon:
NOTE: i tested this with WEIG as parameter 5 and got same results:

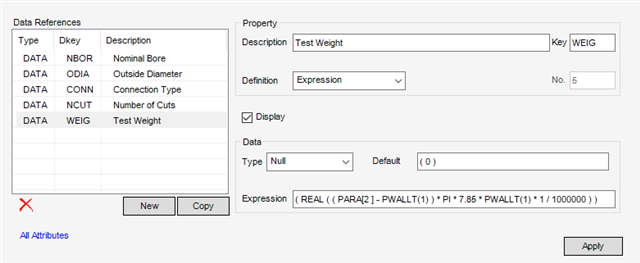

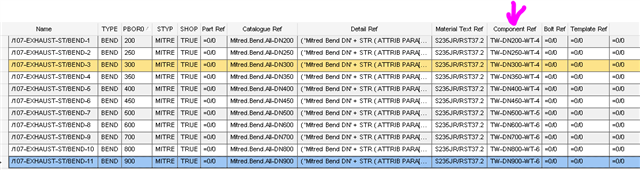

Spec:

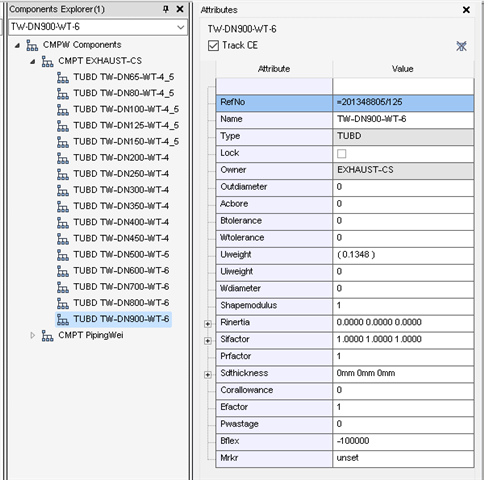

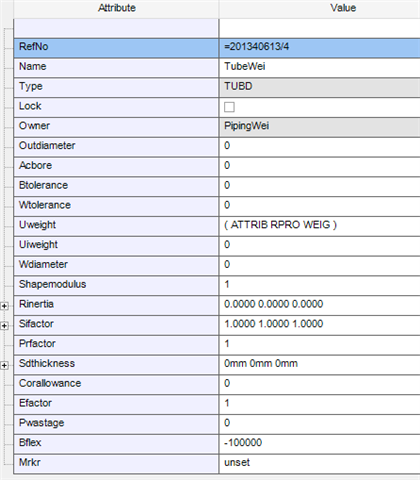

TUBD:
EDIT:
Might be useful to know; I have set up some pulled bends for bendmachine in a similar fashion, using the same WEIG formula and TUBD element, and they work fine.
