Is anyone can tell me how to create assemblies in PDMS 12, after few minutes to
understand, I found a example in SAMPLE Project, where Assemblies are made of
Design Parameters Template, but where is the link between the Piping Spec and
the Template?
I want to create a assembly for a basket for strainer, which should come with a tee, a flange w/ gasket & blind flange and a basket. So I was looking for
the flanged-tee in SAMPLE Project.
When you are going to buy a T type strainer, doesn't is come from the supplier with the basket, the tee, the gasket and the blind flange as one piece?
Can't you do it as one component in Paragon?

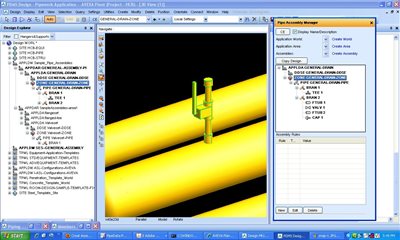

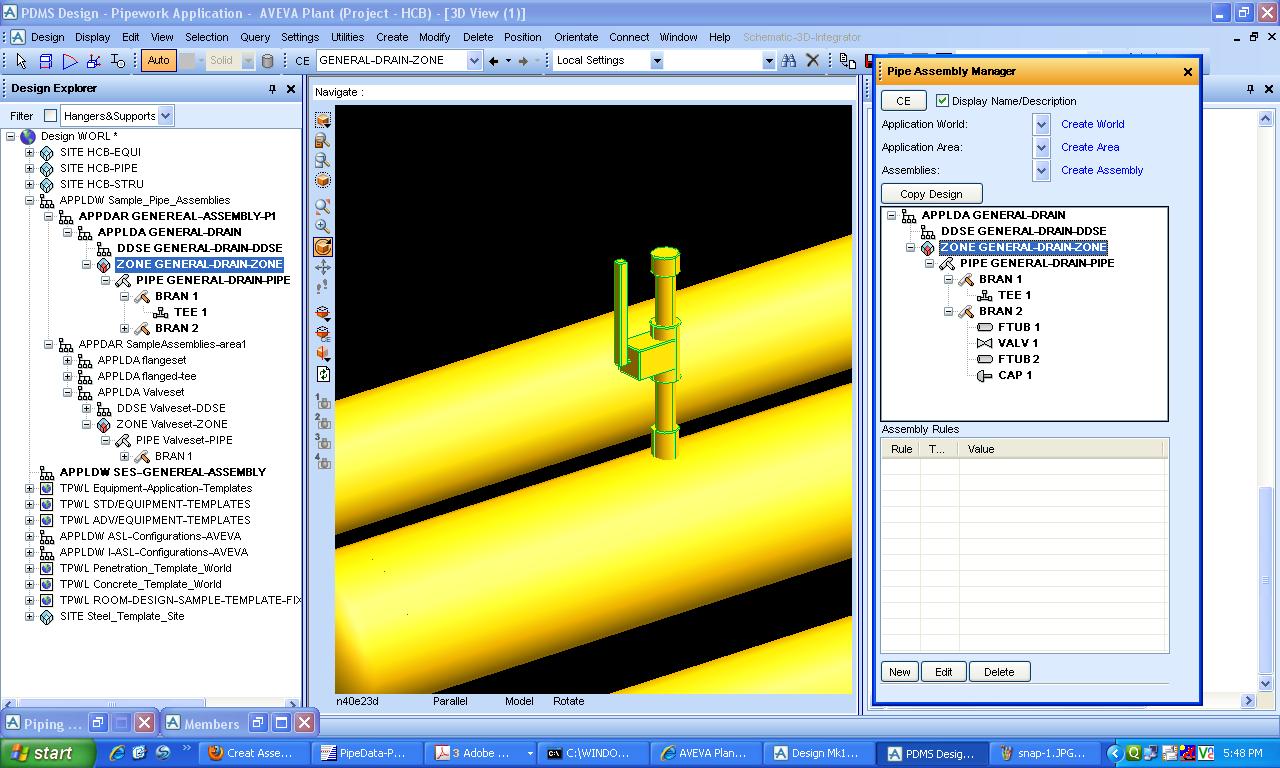

Anyway, you just need to model it once in Design, then you create the necessary hierarchy starting from APPLDW and by pressing the Copy Design button you select the components you need to be part of the assembly.
For further help you can read C:\AVEVA\Plant\PDMS12.0.SP6\Manuals\Docs\Pipework Design User Guide.pdf Chapter 12 Piping Assemblies
Hopr this can help
You mean the form that comes out from Create-->Components... or the new 12 one that you open by clicking on the "Show pipe component creation form" icon?
