Structure Sheets

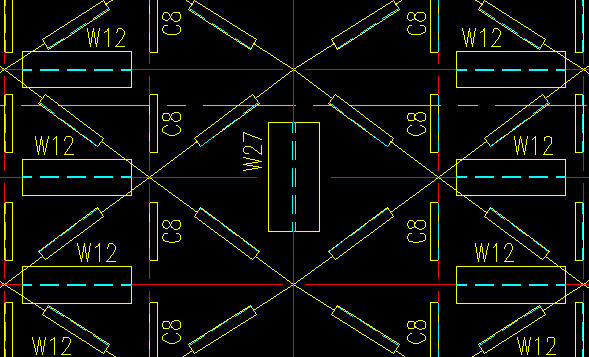

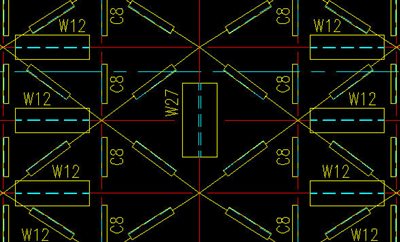

Angello Padilla Maradiegue
Angello Padilla Maradiegue over 15 years ago

  • Sign in to reply
  • Cancel
  • Angello Padilla Maradiegue
    Angello Padilla Maradiegue over 15 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Eric Callis
    Eric Callis over 15 years ago
    I was asked to do this years ago when we first started using PDMS in the office (95). It was a pain in the butt as you have to have a symbol for each SCTN type and different orientation. For examle, for an H shape you would need a profile along the axis (like a column in plan view), a profile flanges head on, and a profile web head on (assuming that you don't have to show any other bangs!).  Just remember that you can do a lot of axis flipping of symbols by using the xyscale with negative values and the Degree attribute.

    In my case I convinced them to accept line representation for plans and universal hidden for elevations/sections
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Neil Dryden
    Neil Dryden over 15 years ago
    I've heard this has been achieved with geometry created in Cats & Specs...

    You have to take into account levels...what you want to see in draft isn't how you wish to see it in Design...

    Cheers
    Neil
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Cody Austin
    Cody Austin over 15 years ago


    235252SCTNCutback..zip

    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • sergey_b007
    sergey_b007 over 15 years ago
    Thanks codooaustin
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Cody Austin
    Cody Austin over 15 years ago
    Thanks codooaustin


    No problem.  The documentation is incomplete nor is it supported by AVEVA.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Eric Callis
    Eric Callis over 15 years ago
    Nice. Who rolled that?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Cody Austin
    Cody Austin over 15 years ago
    Nice. Who rolled that?


    One of the rookie developers in the UK.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Travis Fincaryk
    Travis Fincaryk over 15 years ago
    I managed to achieve this without connecting steel, which will save time for our designers.

    I created a new LPICTURE in the DRA-GEN-LINDEF file:

    LPICTURE 21 MODE 6 SIZE 25 GAP 10

    Then the new PLOT and DEV pens:

    PLOTPEN 195 Colour 1 SOLID LTHICK 4 LPICTURE 21
    DEVPEN 195 Colour 5 SOLID LTHICK 4 LPICTURE 21

    Next in your STYLE change the MLNpen to 195

    You can model steel member-line to member-line, except when framing into a column they should be cut-back to the web or flange.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • avwf_zplau
    avwf_zplau over 15 years ago
    No problem.  The documentation is incomplete nor is it supported by AVEVA.


    Could this be the reason to leave out the "appuserdef.pmlobj' file described in the doc file?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
