エンタルピ関数の解説について

PIsystemで使用できるエンタルピの(以下の)関数の解説についてドキュメントは無いでしょうか?



StmEng_tsatp Saturation temperature as a function of pressure.

StmEng_hsatp Saturation enthalpy as a function of pressure.

StmEng_ssatp Saturation entropy as a function of pressure.

StmEng_vsatp Saturation vapor specific volume as a function of pressure.

StmEng_psatt Saturation pressure as a function of temperature.

StmEng_hsatt Saturation enthalpy as a function of temperature.

StmEng_ssatt Saturation entropy as a function of temperature.

StmEng_vsatt Saturation vapor specific volume as a function of temperature.

StmEng_vpt Vapor specific volume as a function of pressure and temperature. (For saturated and super heated steam.)

StmEng_vptl Water specific volume as a function of pressure and temperature.

StmEng_vph Vapor specific volume as a function of pressure and enthalpy. (For wet and dry steam.)

StmEng_vps Vapor specific volume as a function of pressure and entropy. (For wet and dry steam.)

StmEng_hpt Enthalpy as a function of pressure and temperature. (For saturated and super heated steam.)

StmEng_hptl Liquid enthalpy as a function of pressure and temperature. (For water.)

StmEng_hps Enthalpy as a function of pressure and entropy. (For wet and dry steam.)

StmEng_spt Entropy as a function of pressure and temperature. (For saturated and super heated steam.)

StmEng_sptl Liquid entropy as a function of pressure and temperature. (For water.)

StmEng_sph Entropy as a function of pressure and enthalpy. (For wet and dry steam.)

StmEng_tph Temperature as a function of enthalpy and pressure. (For wet and dry steam.)

StmEng_tps Temperature as a function of entropy and pressure. (For wet and dry steam.)

StmEng_xph Steam quality (vapor fraction) as a function of enthalpy and pressure. (For wet steam.)

StmEng_xps Steam quality (vapor fraction) as a function of entropy and pressure. (For wet steam.)

StmEng_hpx Enthalpy as a function of pressure and steam quality. (For wet steam.)

StmEng_spx Entropy as a function of pressure and steam quality. (For wet steam.)

Parents
  • イシカワさん、



    PI System Explorer User Guide(日)がOSIsoftのテクニカルサポートからのダウンロードも可能です。

    2015のがありますが、2012 R2のバージョンの日本語版がありません。

    2012から2015にスチームの関数は特に変わっていないと思うので、2015のバージョンでも参考になると思います。





    PI System Explore 2015 User Guide:

    https://techsupport.osisoft.com/Downloads/File/232091ab-1949-4d26-965f-5c8d6ddd7976

  • Jeromeさん



    ありがとうございます。

    ダウンロードも出来ました。



    PI System Explorerでのスチーム関数は ProcesBookでは使えないのでしょうか?

    例えば、

    StmEng_tsatp は使えますが、 Steam_TsatP はつかえない。



    PI System Explorerユーザーガイドでは、

    このスチーム関数を、PI Performance Equation で使用する同様のスチーム関数と混同

    しないでください。PI Performance Equation で使用するスチーム関数の名前は

    「StmSI_」または「StmEng_」で始まります。分析式で使用するスチーム関数の名前は

    「Steam_」で始まります。



    と記載がありますが、PI Performance Equation とは何ですか?

  • PI ProcessBookで利用したい場合は、下記のようにできます。

    (下記の手順でAF 2017で実装しましたが、2012のバージョンでも動くと思います)

    1.AFでスチームの関数を利用する式を書き、属性に書き込んでいます。

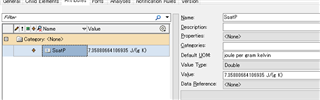

    2. 属性の定義は下記のようにします。Data Reference: None, UOM: J/(g K)

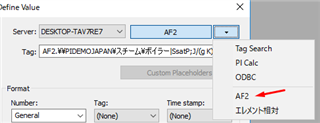

    3. PI ProcessBookで値のシンボルを選んで、タグ検索ではなく、AF2のオプションを選んで、上記の属性を検索します。



    4.結果







    PI ProcessBookのData Setでもスチームの関数を利用できますが、

    現在では、ディスプレイに分析、しきい値、他のロジックは入れないのうがよいと考えられます。

    その変わりに、このデータのすべてをAFでしっかり管理したほうがよいということです。





    PI Performance EquationはAF分析の前のストリーミングアナリティクスの仕組みです。

    現在はAF分析のご利用をおすすめ致します。

  • Jeromeさん



    役に立つ情報、ありがとうございました。

    今後ともよろしくお願いいたします。



    石川
